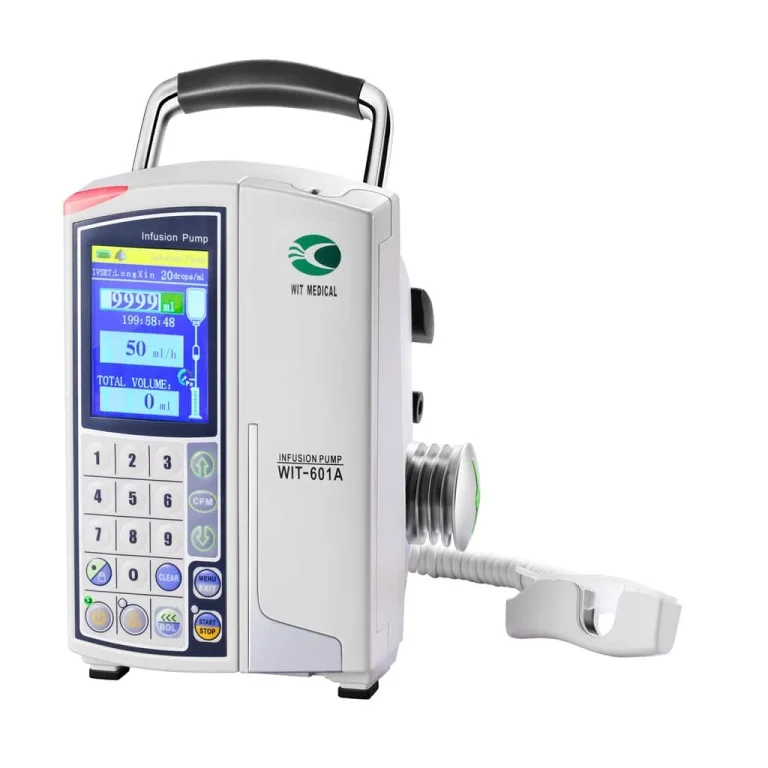

Medical Infusion Pump
High quality IV Infusion Pump, with heater & TIVA Drug Lab.
European Standard, At present we OEM For Russia, Italian, Greek & UK
5 years warranty
Type First-Aid Devices
1.1 Scope of application
It is applicable to accurate, constant and continuous intravenous infusion in Hospitals and other medical institutions.
1) Including 12 kinds working mode: Volume / Drop / Micro / Programme / DOSE Weight / Drug Lab. / Manual Bolus.
2) Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import.
3) Comfort design with heater, Improve the experience of patients in low temperature infusion.
4) Support changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working.
5) Advanced pressure detection technology, adjustable 20 level, and two option of units: mmHg / kPa.
6) With the unique alarm: Pre-alarm of end infuse, Pre-alarm of high pressure block and etc. to meet the needs of special treatment
7) IV set management, could add / remove / edit more than 40 kinds tubes.
8) Powerful safety self-check function to ensure the pump working properly
1.2 Technical Parameters
|
Function Option |
With Drug Lab. |
Without Drug Lab. |
|
Drug Lab. |
Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import. |
NONE |
|
Working Mode |
Rate/VTBI,Time/VTBI,Rate/Time,Volume,Drop,Micro,Simple Rate,Programmable,DOSE Weight,Drug Lab,Auto Bolus,Manual Bolus. | |
|
IV Set |
Open System for 10d/ml,15d/ml,20d/ml,60d/ml (3.4mm – 4.5mm) | |
|
IV Set management |
could add / remove / edit more than 40 kinds tubes | |
|
Accuracy |
Volume Mode:≤ ±5%,Drop Mode:≤ ±2% (after calibrate) | |
|
Calibrate |
Automatic or manual calibration of infusion accuracy | |
|
Rate |
Volume:0.1ml/h~1200ml/h Purge:600ml/h
Drop:1d/min~400d/min |
|
|
VTBI |
1~9999 ml or OFF | |
|
Total Volume Σ |
0~9999.9 ml | |
|
KVO |
1ml/h~5ml/h Adjustable,Default:1ml/h | |
|
Programmable |
Maximum 8 steps of different infuse rate / time / VTBI | |
|
BOLUS |
Manual Bolus:long Press the Bolus key to infuse and release to stop
Auto Bolus:short press the Bolus key and set the VTBI & Rate |
|
|
Upper Pressure |
High / Middle / Low, 3 level, could off on the menu. | |
|
Down Pressure |
200mmHg – 1200mmHg, 20 level, live pressure display, mmHg & kPa two units | |
|
Pre-Alarm Occlusion |
When the pressure in the tube goes up, it has the function of early warning | |
|
Pre-Alarm Finish |
1 min~30 min, The alarm can be set ahead of VTBI | |
|
Parameters Modify |
changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working | |
|
Keypad Locker |
Manual / Auto lock keyboard | |
|
History Record |
Record 20000 infuse records, 10000 alarm records, can be downloaded to the computer to save & query | |
|
Self-Test |
safety real time self-test function to ensure the pump working properly | |
|
Bubble |
Detected by ultrasonic sensor with adjust setting 5 level, 50μL ~ 800μL, | |
|
Drop Sensor |
Infrared sensor to detect the number of drops, monitoring the status in case the empty bottles | |
|
Alarm |
Bubble, Door open, Finish, Pause timeout, Down Occlusion, Up Occlusion, Lower Battery or damage, Motor error, Incorrect IV Set-type, Pressure test failure, Motor failure, Abnormal drop rate, Heater failure and etc. 30 kinds safety monitoring alarm | |
|
Light Tips |
3 color light tips:Green for infuse working;Orange for low level alarm (counting working);Red for high level alarm (pump stop). | |
|
Voice Tips |
Compliance YY 0709-2009 medical standard, Alarm and key volume level adjustable, with Mute function, | |
|
Monitor |
High brightness color LCD, Adjustable brightness | |
|
Communication |
RS485 port, connect with PC to update / download | |
|
AC Power |
AC100V~240V,50Hz/60Hz,25VA | |
|
Battery |
Ni-MH battery, DC9.6V, 2000mAh (after full charged, could continue work more than 10 hours by 25ml/h rate) | |
|
Battery power query |
Live-time query battery life and battery charge status | |
|
Class |
Class I, Type CF, IPX4 | |
|
Installation |
For round and square pole,Horizontal / Vertical | |
|
Dimension |
2.0kg , 130mm×120mm×195mm | |
|
Environment |
5℃~40℃; 20%~90% humidity; 70kPa~106kpa atmospheric | |
|
Use Range |
For the patients with constant intravenous infusion of drugs | |
| Weight | 5 kg |
|---|
